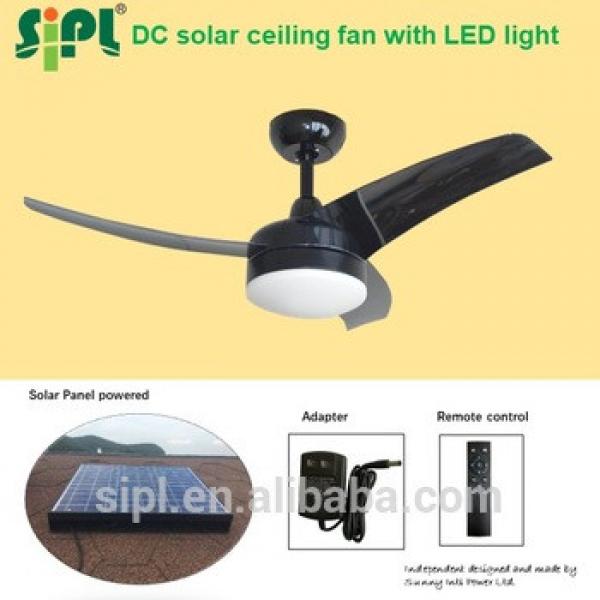

Energy efficient 30 watt solar panel power super cooling homestead ceiling fan with led light
1.The ceiling fan with 42 inch ABS fan blades is powered by 35 watt polycrystalline solar panel(495*415*25mm), including a 10W LED light for
2.The ceiling fan with led light is connected to the solar panel with 15m cable.
3.AC/ DC power adapter is added to keep the fan & light working even in sunless periods.
4.A remote controller is for the fan & light on-off /rotation speed / brightness control.
35 watt polycrystalline solar panel
Adjustable with mounting brackets
10W, 24V led light
5000~5500K (pure white)
DC output: 24V, 1.5A
CE / UL standard
Features of the solar ceiling fan with adapter:
1.Equipped with high quality dc motor for high efficient & long lifespan.
2.More air flow but with lower wind pressure
3.Auto switch to grid power to keep running in sunless time, as long as with dual power adapter connected
4.Energy-efficient & Energy-saving air cooling fan for home or factory use
5. Once pay, benefit longElectrical Features
#SN2017025 solar ceiling fan with light runs freely in day time + grid electricity backup the night time periods
|Solar Panel|| 35W / 24V, polycrystalline, angle adjustable|
|Fan||42 inch, 3 blades|
|Motor|| Brushless DC Motor|
working voltage 12-24V according to the solar panel input
|Motor Speed||90~210 RPM, according to the sunlight condition, and includes a Remote Controller for 5 rates manual speed control|
|Air Flow||max. 10325CMH / 6020CFM|
|LED Panel||10W / 24V, can be turned on/off flexibly by the Remote Controller|
|AC/DC Power Adapter||100-240V AC input, for 24V*1.5A DC outputthe fan / LED panel won't consume any grid electricity during sunny day hours, this power adapter would get involved to work only when sunlight is weak & when it's completely night time(if you don't want any electricity bill, you can ask us for battery to do this energy backup job)|
|Remote Controller||included in this system, and it provides many manual controlling functions to the product(an extra inbuilt controller is included in this system to take care of the automatic power switch between solar panel & AC/DC power adapter; so you don't need to worry about when is the product consuming solar panel power and when is it consuming grid electricity)|
|Function & Work Time|| Air Cooling + Lighting use|
Running / Lighting F.O.C in day time under solar panel supply; and continue the jobs at night time under grid electricity backup
|Wire Length||6m cable to connect solar panel & fan host (can do longer per your request)3m cable for the AC/DC power adapter to connect with wall socket|
|Package||1 set / 2 cartons|
(below is an image with function illustrations on the Remote Controller)
